Proxxon Bench Drill Press TBH (28124)

Code: 28124


Quick Overview

Please request quote from

Out of stock

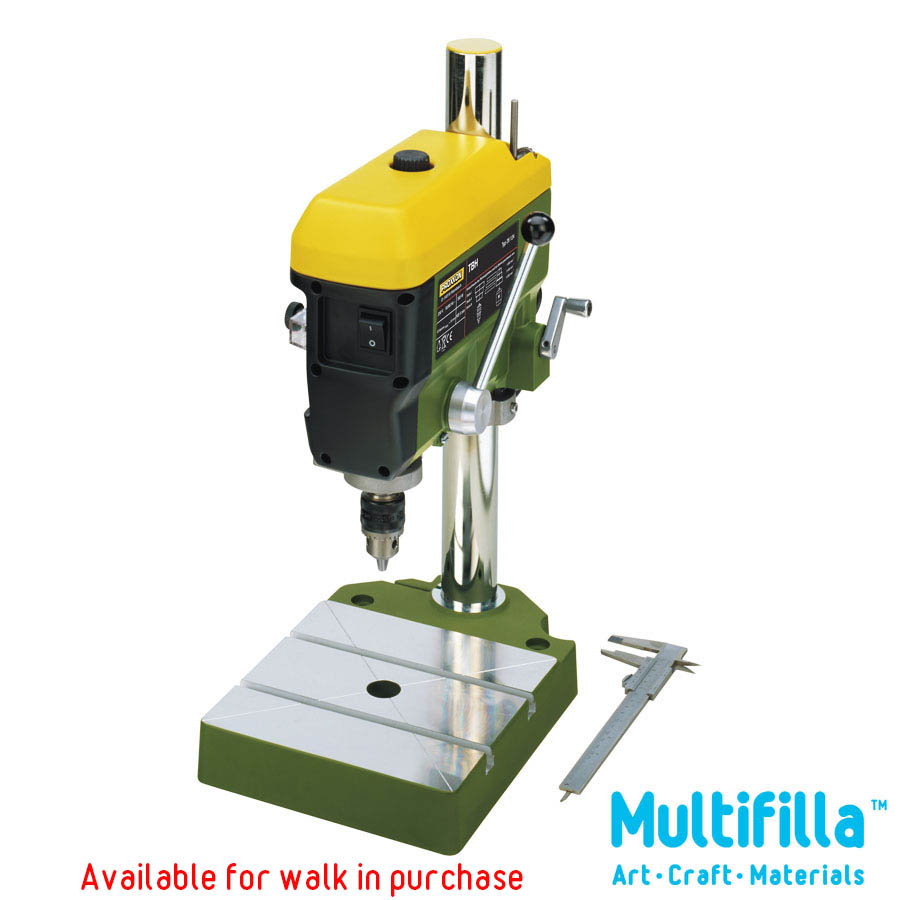

Bench drill press TBH

Practical height adjustment via toothed rack with easy to operate crank.
Powerful, long-lasting direct current motor. Spindle drive via triple belt pulley with the advantage of roughly 6 times the torque in the lower rotational speed range. Practical drill depth indicator with adjustable limit stop. Drill spindle with precision bearing. Spindle head with 1/2″ thread for the corresponding chuck (industrial quality). Spindle with additional fit for steel collets NO 28 200. Ideal for jig boring with the compound table KT 150.

Technical data:
230 Volt. Spindle rotational speeds 1,080 – 2,400 and 4,500rpm. Sliding sleeve stroke 63mm. Height adjustment via crank 70mm. Throat 140mm. Usable table surface 200 x 200mm. Column 45 x 500mm. Tool holder up to 10mm. Drilling performance in steel 10mm. Weight approx. 10kg.
NO 28 124

  1. Practical height adjustment via toothed rack with side crank.
  2. Stable, strongly ribbed plane-milled worktable with two T-slots.
  3. Practical drill depth indicator with adjustable limit stop.
  4. Ideal for jig drilling with the KT 150.

Collet set for drill press TBH
Triple slit and hardened. 1 each of 2.35 – 3 – 3.2 – 4 – 5 and 6 mm. With collet closure nut (M 17) Neatly packed in wooden box with sliding lid.
NO 28 200

T-nut set for PRIMUS vices
2 T-nuts, screws and the necessary accessories. For fixing to the drill tables of: BFB 2000, KT 150 and bench drill press TBH.
NO 20 394

Table and arm of the table drilling machine offered here are made of die-cast aluminium. A refined, rust-proof and statically very solid material. Fittings and feeds are machined on our highly modern CNC controlled machines (milled, line-bored, lathed, etc.).

Proxxon Collet Set for TBH – 6pcs (28200)

Proxxon Kit for Fixing Vices ( T-Nut Set), (20394)
