Mill and drill head PF 230

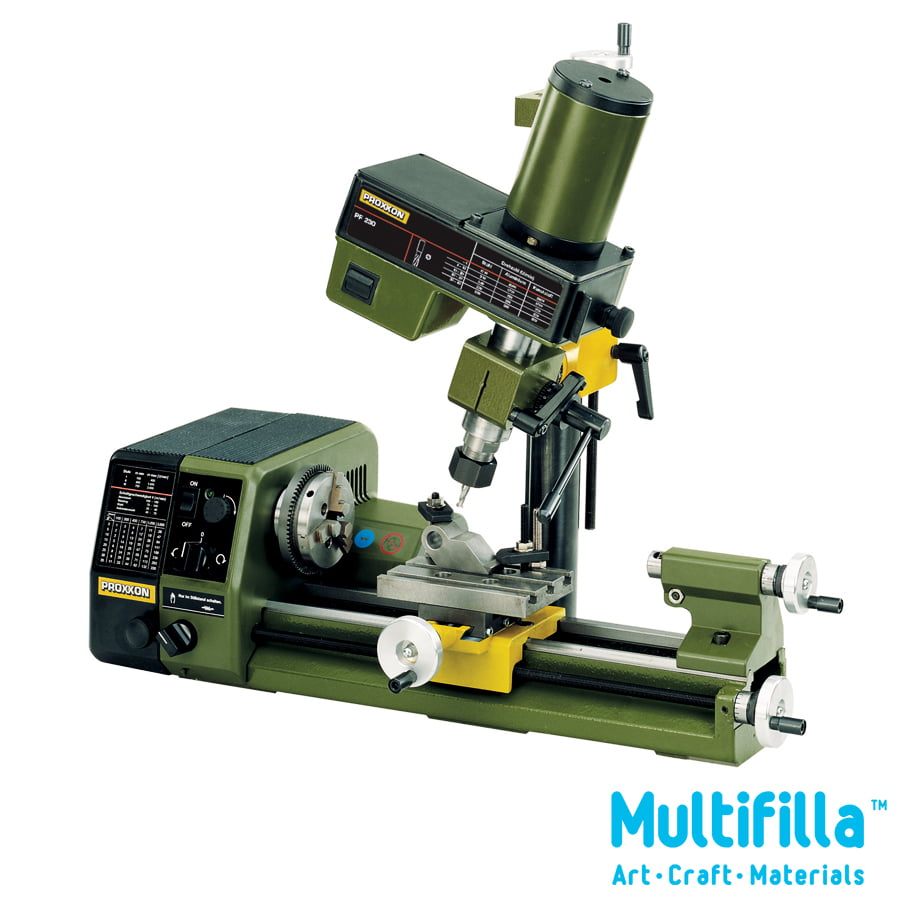

Converts your lathe PD 250/E or PD 400 into a complete machining centre.
Incudes column (35 x 400mm), mounting bracket and fastening screws (the PD 250/E and PD 400 already come with a plane-milled surface). The lathe’s top slide is replaced with the table (supplied) of 110 x 70mm, with 3 T-slots 12 x 6 x 5mm. The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively. The mill/drill head is identical to the MICRO miller FF 230. Three collets of sizes 6 – 8 and 10mm are included.
NO 24 104
Note:
Lathe, milling cutters, work clamps and blocks not included in system.
Accessories for the mill/drill PF 230
Easily installed in a few seconds. The feed may be used via either the height feed (vertical) or the fine feed in the tilted position. The graduated scale may be zero reset. One revolution is equivalent to 1.5mm spindle travel (1 division = 0.05mm).
NO 24 140
Universal dividing table UT 400
For accurate machining of circular work pieces. The table may be fixed horizontally or vertically. Worm drive for division through 360° allowing for almost all possible divisions below 100. Supplied with 4 index plates: 27/42, 33/40, 34/39 and 36/38. Used to manufacture sprockets, gearboxes and drives, ratchets, cams, etc. (the faceplate is not included). The taper is identical to the main spindle of the lathe. With matching nuts and screws for fixation in MICROMOT standard T-slots (12 x 6 x 5mm). Supplied in a wooden box with sliding lid.
NO 24 421
Gear tooth chuck (10mm) with adapter
Industrial quality, however not as accurate as the collets. With 10mm adapter which fits into the 10mm collet. Includes the chuck key.
NO 24 110
Five piece collet set for PF 230 and FF 230 (not depicted)
Includes 1 each of 2.4 – 3 – 3.2 – 4 and 5mm, for milling cutters. Supplied in a wooden box with sliding lid.
NO 24 144
Step clamp set of steel.
2 step blocks and clamps each.
With matching slot nuts and fastening screws for T-slots as per MICROMOT standard (12 x 6 x 5mm). In wooden box with sliding lid.
NO 24 256 For work pieces up to 20mm thickness
NO 24 257 For work pieces up to 35mm thickness
Precision vice PM 60
Perfectly rectangular. To be placed sideways and on the end face. With matching nuts and screws for fixation in MICROMOT standard T-slots (12 x 6 x 5mm). Supplied in wooden box with sliding lid. Jaw width 60mm. Clamping capacity 42mm. Total length 100mm.
NO 24 255
Precision V-blocks
Used to clamp various work pieces. Made from hardened steel, precision ground in pairs. Four different depths of prism incisions V, all at 90°. Size 50 x 30 x 30mm. The solid clamp and knurled knob ensure superb securing of the workpiece. Supplied in a wooden box with sliding lid.
NO 24 262 2 pieces
Milling cutter set (2 – 5mm)
All cutters with 6mm shaft. Cutters of Ø 2 – 3 – 4 and 5mm. Double fluted according to DIN 327. Made of HSS. Comes in wooden box with sliding lid.
NO 24 610
Milling cutter set (6 – 10mm)
4 cutters Ø 6 – 7 – 8 and 10mm. Four flute design according to DIN 844. Shafts 6 and 10mm respectively. Made of HSS. Comes in wooden box with sliding lid.
NO 24 620
Edge finder set
Used for fast and accurate location of starting point of work pieces with respect to the machine spindle on milling machines. Size 6 x 6 x 50mm and 6 x 5 x 75mm. Comes in wooden box with sliding lid.
NO 24 434
Lathe practice for model makers
By Tilmann Wallroth. 230 pages, written without reference to trademarks. An interesting book describing in detail all important lathe components and working stages in a practical manner. Included are many easily understood examples, clear and informative illustrations and many tips for use. Highly scientific advice was deliberately omitted. Available in German only!
NO 24 999
